* 특징
1. 최근에 개발된 보급형 금(GOLD) 탐지기이다.
2. 2개의 감지디스크는 여러모양의 땅속 광석에서 목적물(그)의 위치를 이상적으로 찾아준다.
3. “3가지”로 주파수를 변경(6.4kHz, 20kHz, 60kHz)하여 크기가 다른 금 또는 목적물을 찾을수 있다.

* 제품
1. 길이; 최대 1.35미터, 최소 1.19미터
2. 무게; 본체 0.7Kg,  금찾기 타원형판 0.4Kg

Includes(내장): 10" DD Coil, Armrest, NiMH Rechargeable battery system including NiMH Battery Pack & Wall Charger, Backup Alkaline battery case for AA batteries (not included;제공안함) Instruction Manual *액세서리(제공) Automax v4 Pinpointer Probe ; v4 정밀 핀 ESP (Extended Service Plan) ; 확장 계획서 Audio 200 Headphones ; 헤드폰 Official Carry Bag ; 운반 가방 Official Tool Pouch ; 연장 지갑 State by State Treasure Guide CD ; 상황별 보물 안내 CD 3 Pocket Coin Pouch ; 3 포켓 동전 지갑

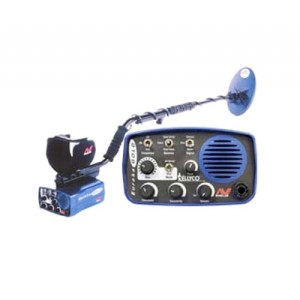

Hot Rocks are no problem for the Eureka Gold, it will punch through highly
mineralized soil with ease. Why restrict your prospecting when you can
find more gold, with the Eureka Gold, faster and easier than ever before.

Lines indicate areas of maximum sensitivity
Profiles of sensitivity along Double 'D' coil at various depths
The 10" (25cm) coil supplied with the Eureka Gold is a Double D coil, that is,
it contains two 'D' shaped windings which are partially overlapping.
This Double 'D' configuration is ideal for locating deep targets in variable
mineralized ground.
The Double 'D' detection pattern is "blade like" and is most sensitive from
its tip to its heal. This makes pinpointing targets easy, and allows more ground
to be searched with each sweep, as each sweep has to be overlapped less.

The Eureka Gold gives you 6.4kHz for maximum depth, 20kHz for general detecting
and the super sensitive 60kHz to find the smallest gold nuggets that others are
missing. Minelab's exclusive triple frequency technology makes prospecting easier!

Featuring Minelab's "Accu-Trak" Digital Ground Balance with switchable 2 speed
recovery, combined with new microprocessor controlled discrimination circuitry
takes the guess work out of detecting so YOU will find more gold, more often.

• Exclusive Triple Frequency operation with switchable 6.4, 20, or 60 kHz!
• "ACCU-TRAK" DIGITAL Ground Balancing with 2 speed adjustable or fixed mode.
• Iron Rejection in each frequency. Variable Discrimination Control gives you ultimate accuracy.
• Full coverage with Minelab's 10" Double D "easy sweep" elliptical coil system.
• NEW Rugged Metal Armrest and stabilizer strap.
• Trash rejection circuits in each frequency
• NEW "FIRM FEEL" Comfort Balance Shaft.
• State-of-the-Art NiMH rechargeable Battery System.
• Slide in detector stand
• 2 position box mounting system.
• Weighs 4.5 lbs with batteries.
• Uses 8 "AA" batteries
• 2 year Minelab warranty



Features
Length	Maximum 53in (1350mm) Minimum 47in (1190mm)
Weight	Control Box 26.1oz (740gms) GoldSearch 1000 Elliptical Coil 14.8oz (420gms)
Search coil	GoldSearch 1000 Elliptical Coil
Configuration	2 position Shaft mount and optional Hip mount
Technology	Very Low Frequency (VLF)
Transmit Frequency	3 Frequencies (6.4, 20 &60 kHz)
Ground Rejection	Accu-Trak Digital Ground Balancing
NiMH Rechargeable Battery System	12V, 1000 mAh
Mains Charger	110V (USA), 230V (EU), 240V (AUS)
Metal Armrest and Cover	Aluminum Armrest &Padded Cover
Detector Stand	Aluminum, Detachable
Controls
On/Off; Volume	1 turn control	Sensitivity	1 turn control
Threshold	1 turn control	Discriminate Level Adjust	1 turn control
All Metals/Discriminate	2 pos. switch	Tone	1 turn control
Frequency	3 pos. switch	Ground Balance	3 pos. switch
Signal	3 pos. switch
